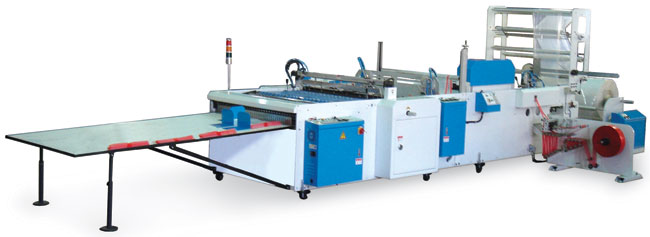

Poly-draw Bag Making Machine

OPTIONAL EQEIPMENT :
FEATURES :
  • Draw-tape slitter is specially designed for use with the draw-tape bag making machine and reduces the reel change cycle, doubles the usage time and increases production.
  • The EPC device combined with the unwinder is sensitive and stable for easy operation.
  • Fully automatic unwinder, unwind speed auto-adjust. (Optional)
  • Triangle folding device, easily and smoothly folds the single layer filminto double. (Optional)
  • Choice of overlapping EPC and triangle folding device to save on occupied installation space.

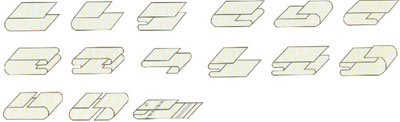

  • Mixed use of multi-functions, can produce many different styles of bags.
  • Standard equipments are the double lip folding device, bottom gusset device and side opening device. (Side opening)
  • Special rotary seal knife design makes the cleaning of seal knife safe, convenient, quick and easy.
  • Special pneumatic gate and press roller device, cooperating with the main machine, can carry and out-feed the blocked finished product. (Optional)
  • Optional equipment: self-adhesive device, pearl insertion device, punching unit, double sealing device and block out-feed device.
SPECIFICATIONS :
Model Bag Size(mm) Production Speed
(bags/min)
Thickness of Film
(mm)
Power Required Machine Size
LxWxH(M)
Width Length Top Folding Bottom Guessting Poly-draw Bag Side
Seal Bag
Draw Tape Side
Seal Bag
Poly-draw Bag Side Seal Bag
SV-
1000-DT
100
~700
100
~860
100
~950
Up to 75mm Up to 65mm 20
~100
20
~160
HDPE
0.03~0.08
HDPE
0.03~0.08
6.2KW 8.33x1.75x2.0
LDPE
0.07~0.10
LDPE
0.05~0.12
SV-
1200-DT
100
~850
100
~1050
100
~1150
Up to 75mm Up to 65mm 20
~100
20
~150
HDPE
0.03~0.08
HDPE
0.03~0.08
6.7KW 9.00x1.95x2.0
LDPE
0.07~0.10
LDPE
0.05~0.12
SV-
1500-DT
100
~1150
100
~1300
100
~1440
Up to 75mm Up to 65mm 20
~100
20
~135
HDPE
0.03~0.08
HDPE
0.03~0.08
9.2KW 9.90x2.25x2.0
LDPE
0.07~0.10
LDPE
0.05~0.12

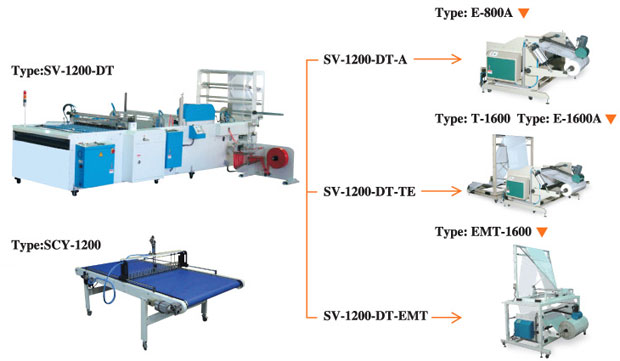

Optional Equipment 1.Air Compressor:3HP   2.Double Sealing device   3.Punching Device   4.Top-fold Seal Device
5.Self-adhesive Tape Feeding   6.Perforation Device   7.Air Shaft 8.EPC with Auto Unwinder
9.Triangle Folding Device
  • Design and specifications are subject to change without prior notice
