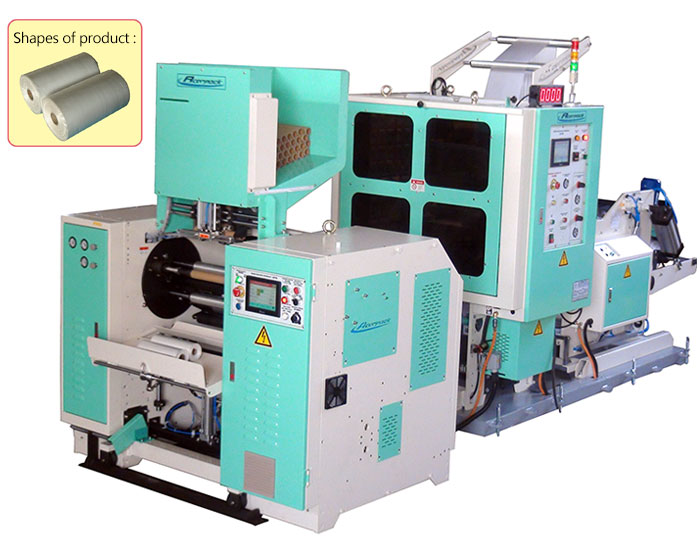

Auto-Change Core Bag on Roll Making Machine
Servo Co-speed system ( in-line extruder possibility)

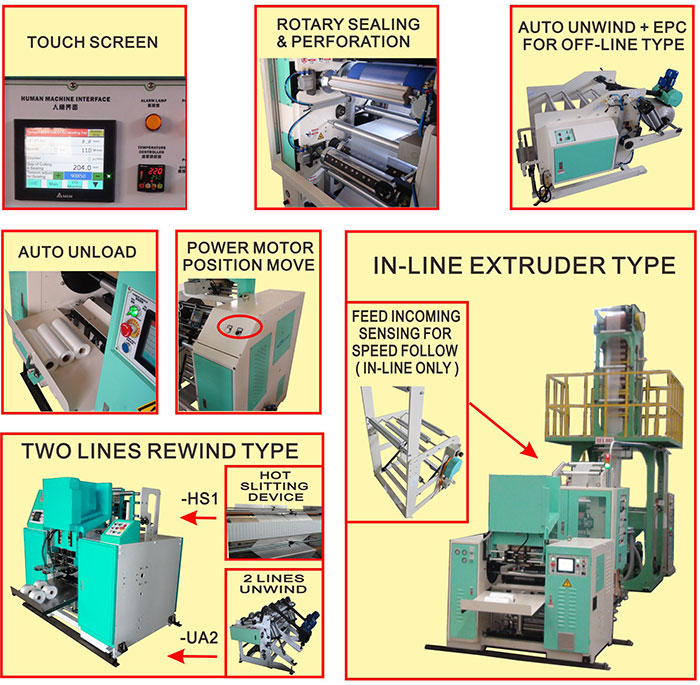

MACHINEFEATURE :
  1. Easy change the bag length and tension by touch screen digital setting.
  2. Rotary Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and Long life perforation knife designed.
  3. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  4. Printing mark function possibility and Customized Perforated pitch.(optional)
  5. Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
  6. Automatic speed follow by in-feed dancing device of IN-LINE type.
  7. Easy to operate and maintain full-featured surveillance system by HMI.
  8. Easy change designed for different core size of automatic rewind machine.
  9. Micro tension system for thin film(min. 5 micrometer) and very easy to tear.
  10. Auto Unloading when products roll at full position and motor edge position adjust.
  11. Two line rewind with hot slitting system for double products possibility.(extra type)
  12. Two line rewind with two line unwind for double products possibility.(extra type)
SPECIFICATIONS :
Model Bag Width(mm)
line x Dia.
Bag Length/
Film thickness (mm)
Capacity
(Meter /min)
Main Motor /
Servo Motor
Heater
Power
Required
Air supply
Required
Machine Size
L × W × H (M)
Packing Size
L × W × H (M)
N.W. / G.W.
(Kgs)
OFF-LINE STR-
400M-A21
1 x 230~375
Roll max.130
200~2000 / 0.006~0.018
Max. 120M/
line/ minute
10.75KW/
6 Servo
2.0 KW 9.5KW 0.6 Mpa
300ml / min
4.7 × 1.6 × 2.4 Sealing machine
2.9 × 1.2 × 2.2 /
Winding machine
1.5 × 1.7 × 2.2
2500 / 2900
STR-
500M-A21
1 x 330~475
Roll max.130

200~2000 / 0.006~0.018

Max. 120M/
line/ minute
10.75KW/
6 Servo
2.2 KW 9.7 KW 0.6 Mpa
300ml / min
4.7 × 1.7 × 2.4 Sealing machine
2.9 × 1.3 × 2.2 /
Winding machine
1.5 × 1.8 × 2.2
2700 / 3200
STR2-
800M-A22
2 x 220~350
Roll max.130
200~2000 / 0.006~0.018 Max. 110M/
line/ minute
14.5KW/
9 Servo
3.8 KW 13.7 KW 0.6 Mpa
300ml / min
5.9 × 2.6 × 2.5 Sealing machine
3.0 × 1.7 × 2.2 /
Winding machine
2.3 × 2.8 × 2.2
3900 / 4500
IN-LINE STR-
400V4i-A21
1 x 230~375
Roll max.130
200~2000 / 0.006~0.018 Max. 120M/
line/ minute
10.75KW/
6 Servo
2.0 KW 9.5 KW 0.6 Mpa
300ml / min
4.7 × 1.6 × 2.4 Sealing machine
2.9 × 1.2 × 2.2 /
Winding machine
1.5 × 1.7 × 2.2
2500 / 2900
STR-
500V4i-A21
1 x 330~475
Roll max.130
200~2000 / 0.006~0.018 Max. 120M/
line/ minute
10.75KW/
6 Servo
2.2 KW 9.7 KW 0.6 Mpa
300ml / min
4.7 × 1.7 × 2.4 Sealing machine
2.9 × 1.3 × 2.2 /
Winding machine
1.5 × 1.8 × 2.2
2700 / 3200
STR2-
800V4i-A22
2 x 220~350
Roll max.130
200~2000 / 0.006~0.018 Max. 110M/
line/ minute
14.5KW/
9 Servo
3.8 KW 13.7 KW 0.6 Mpa
300ml / min
5.9 × 2.6 × 2.5 Sealing machine
3.0 × 1.7 × 2.2 /
Winding machine
2.3 × 2.8 × 2.2
3900 / 4500
