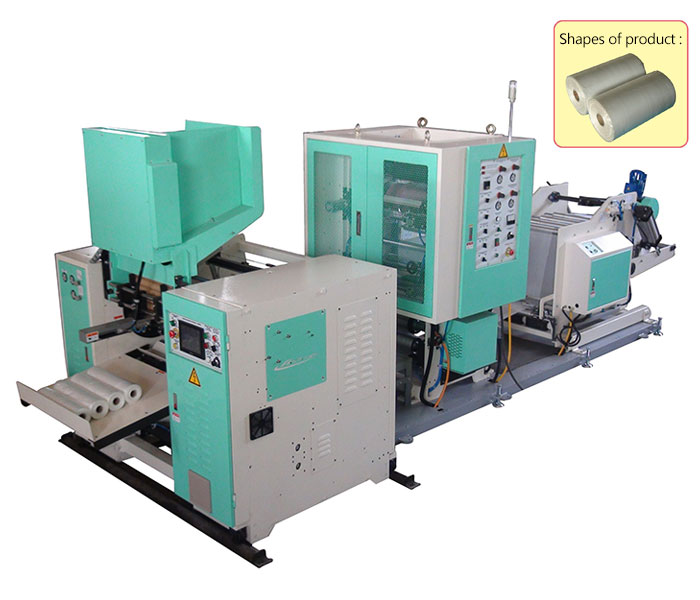

Auto-Change Core Bag on Roll Making Machine (Off- line type)
Mechanical Co-speed system

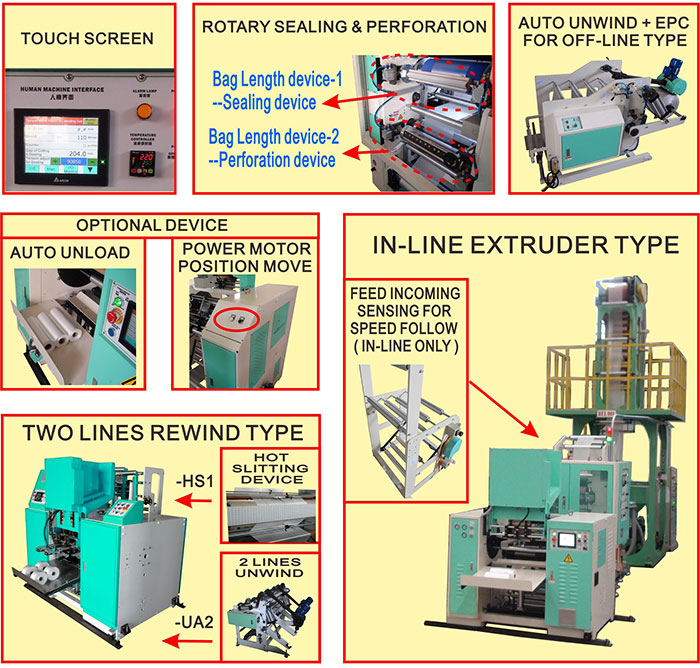

MACHINEFEATURE :
  1. Rotary Sealing and Perforation designed make fast speed and smoothly work,Low tension sealing; Low noise running and Long life perforation knife designed.
  2. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  3. Customized Perforated pitch.(optional)
  4. Bag length by the mechanical gear ratio decision, one size is one set this device.
  5. Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
  6. Automatic speed follow by in-feed dancing device of IN-LINE type.
  7. Easy to operate and maintain full-featured surveillance system by Rewind HMI.
  8. Easy change designed for different core size of automatic rewind machine.
  9. Micro tension system for thin film(min. 6 micrometer) and very easy to tear.
  10. Auto Unloading when products roll at full and motor edge position adjust.(optional)
  11. Two line rewind with hot slitting system for double products possibility.(extra type)
  12. Two line rewind with two line unwind for double products possibility.(extra type)
SPECIFICATIONS :
Model Bag Width(mm) line x Dia. Bag Length/
Film thickness (mm)
Capacity
(Meter /min)
Main Motor /
Servo Motor
Heater
Power
Required
Air supply
Required
Machine Size
L × W × H (M)
Packing Size
L × W × H (M)
N.W. / G.W.
(Kgs)
OFF-LINE STR-
400M-A21
1 x 230~375
Roll max.130
300~600 / 0.006~0.018
Max. 100M/
line/ minute
2.2 KW /
2 Servo
2.0 KW 5 KW 0.6 Mpa
300ml / min
5.5 × 1.9 × 2.4 Sealing machine
3.5 × 1.4 × 2.2 /
Winding machine
1.5 × 1.7 × 2.2
2500 / 2900
STR-
500M-A21
1 x 330~475
Roll max.130

300~600 / 0.006~0.018

Max. 100M/
line/ minute
2.2 KW /
2 Servo
2.2 KW 5.2 KW 0.6 Mpa
300ml / min
5.5 × 2.0 × 2.4 Sealing machine
3.5 × 1.5 × 2.2 /
Winding machine
1.5 × 1.8 × 2.2
2700 / 3200
STR2-
800M-A22
2 x 220~350
Roll max.130
300~600 / 0.006~0.018 Max. 100M/
line/ minute
3.5 KW /
5 Servo
3.8 KW 8.5 KW 0.6 Mpa
300ml / min
6.7 × 2.7 × 2.5 Sealing machine
3.6 × 2.0 × 2.2 /
Winding machine
2.3 × 2.8 × 2.2
3900 / 4500
IN-LINE STR-
400Mi-A21
1 x 230~375
Roll max.130
300~600 / 0.006~0.018 Max. 100M/
line/ minute
1.5 KW /
2 Servo
2.0 KW 5 KW 0.6 Mpa
300ml / min
5.4 × 1.9 × 2.4 Sealing machine
3.4 × 1.4 × 2.2 /
Winding machine
1.5 × 1.7 × 2.2
2500 / 2900
STR-
500Mi-A21
1 x 330~475
Roll max.130
300~600 / 0.006~0.018 Max. 100M/
line/ minute
1.5KW /
2 Servo
2.2 KW 5.2 KW 0.6 Mpa
300ml / min
5.4 × 2.0 × 2.4 Sealing machine
3.4 × 1.5 × 2.2 /
Winding machine
1.5 × 1.8 × 2.2
2700 / 3200
STR2-
800Mi-A22
2 x 220~350
Roll max.130
300~600 / 0.006~0.018 Max. 100M/
line/ minute
3.7 KW /
5 Servo
3.8 KW 8.5 KW 0.6 Mpa
300ml / min
6.6 × 2.7 × 2.5 Sealing machine
3.5 × 2.0 × 2.2 /
Winding machine
2.3 × 2.8 × 2.2
3900 / 4500
