BOTTOM SEAL MODEL

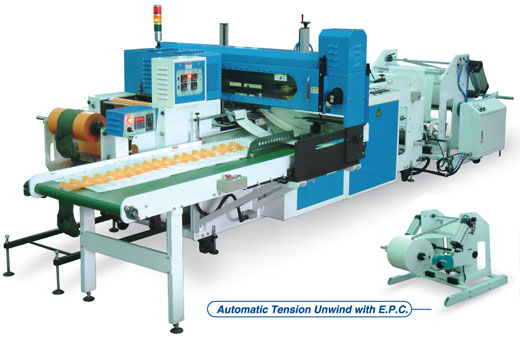

Fully Automatic Bottom Seal Shopping Bag Making Machine
Production Speed：50 Bags/min

Optional Equipment：1.Air Compressor:10HP 2.Air shaft
Control Panel
Stand-up Device
Rotary seal knife Design
FEATURES :
  • Equipped with labor-saving on-load mechanism and an infeed table whose tension is automatic controlled.
  • EPC device stabilizes the film in-feeding position.
  • Stand-up sealing device can make bottom sealed stand-up shopping bags.
  • Special sealing device creates highly strong sealing. The rotary seal knife design provides easy and safe maintenance.
  • Production flow is straightened out, greatly saving on space occupation.
  • Control panel indicates with graphics, overcoming language problems. All operations are clear at a glance.
SPECIFICATIONS :
Model Bag Size(mm) Max. Production Speed (bag/min) air supply Required Power
Required		 Machine Size
LxWxH(M)
Length Width Thickness
HDPE LDPE HDPE LDPE HDPE LDPE
SLV-550 400~650 400~650 350~550 350~550 0.04~0.08 0.06~0.08 30~50 0.6~0.8Mpa 400L/min 7.0KW 6.8x2.0x2.2
  • Design and specifications are subject to change without prior notice
