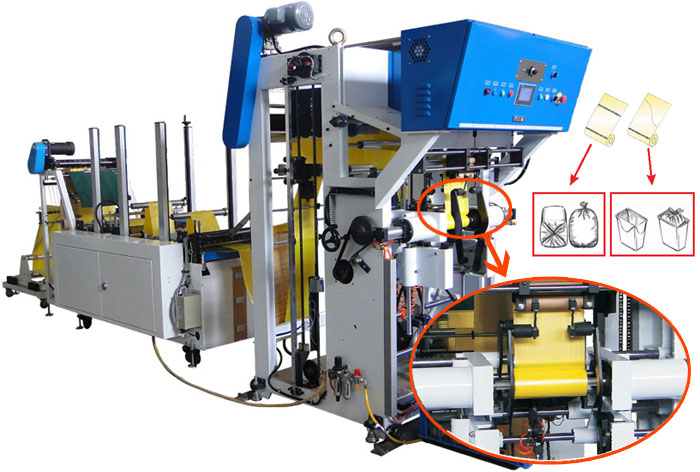

Core and Coreless S-Die Cut Bottom Sealing
Or Star Sealing Bag on Roll Making Machine

Star bottom sealing bag S-die cut Star bottom sealing bag
1. Unwind device
2. Tri-angle fold device
3. Feed roller and motor device
4. Auxiliary out-feed roller device
5. Bottom seal and heating base device
6. Position adjuster device
7. S-Mold perforation device
8. Out-feed roller device
9. Bottom perforation cutting knife device
10. Auto rewind device

FEATURES :
  • Maximum line speed 60M/minute.
  • Servo driven to out-feed system, the film by tensionless sealing.
  • No film or break bag auto check to stop.
  • Rewind device is controlled by speed system, rewind speed will follow automatically.
  • Rewind auto change system, bag making will not stop.
  • P.L.C. and cutting programmed are online controlled; H.M.I. value setting.
  • Simultaneously optional of core and coreless rewind device.
  • Simultaneously optional of S-die cut and bottom seal perforation device.
SPECIFICATIONS :
Model Making Bag Size(mm)

Making bag speed
(bags/min)
Line
speed

Air
supply
Required

Heater  CaP.
(KW)

Motor
CaP.
(KW)
(HP)

Power
Req.
(KW)

Machine Size

Sealing & cutting Coreless
rewind
Core rewind

Core size Dia.*L

L.

W.

H.

Width

Length

Thic
kness

Width

Dia.

Width

Dia.

SCR-500VWS 50~
350
100~
1900
0.08
~0.15
75
~400
Max.   130 220
~475
Max.   200

D35
-D55
*L220-475

(20-120
/Min)
60M
/Minute

0.5~
0.7Mpa
300L/min

Total;
1.4KW
Servo
motor:
2.9KW
AC motor:
4HP+
Gear box
7.5
KW
5.5
M
2.0
M
2.2
M
Optional Equipment 1.Air Compressor: 3HP;  2.Air Shaft
  • Design and specifications are subject to change without prior notice
