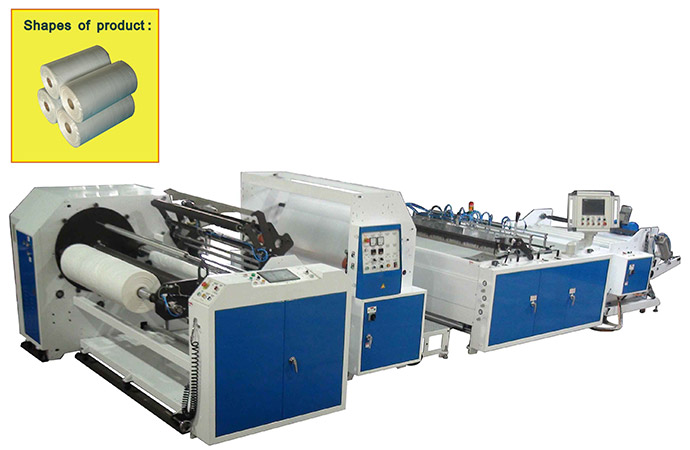

STR-S-A21E-Sn Series

Auto-Change Multi-Line Bag on Roll Making Machine
with Paper Core and Slit Sealing Device Servo Shuttle system
(in-line extruder possibility)

MACHINE FEATURE :
  1. Multi-line products roll by from One jumbo material roll and slit sealing device.
  2. Products roll diameter can up to Max. 450mm(Standard diameter is Max. 220mm)
  3. Easy change the bag length and tension by touch screen digital setting.
  4. Shuttle type Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and easy change perforation knife designed.
  5. Every knife can change the tooth knife pitch for user require.
  6. Printing mark function possibility.(optional)
  7. Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
  8. Automatic speed follow by in-feed dancing device of IN-LINE type.
  9. Easy to operate and maintain full-featured surveillance system by HMI.
  10. Easy change designed for different core size of automatic rewind machine.
  11. Micro tension system for thin film(min. 8 micrometer) and very easy to tear.
  12. Heavy duty film make possibly. The total thickness for bottom sealing up to 240micro.
SPECIFICATIONS :
Model
Bag Width(mm)
line x Dia.
Bag Length/
Film thickness
(mm)
Capacity
(Meter /min)
Servo power /Servo quantity
Heater
Power
Required
Air supply
Required
Machine Size
L×W×H
(M)
Packing Size
L×W×H
(M)
N.W. / G.W.
(Kgs)
OFF-LINE TYPE STR-750S-A21E-S2 1~3 x 720~240 Roll max.220 Min.width 150 220~1200/ 0.008~0.12
Max. 100M/
line/ minute
11KW/
6 Servo
M3.5kw +S1.6kw 15 KW 0.6 Mpa
400ml / min
7.8×2.61 ×1.7 R-1.6x2.7x1.7
S-1.5x1.6x1.9
M-2.0x1.8x1.5
U-1.7x1.4x1.5
5000 / 6000
STR-1000S-A21E-S3 1~4 x 960~240 Roll max.220 Min.width 150

220~1200/ 0.008~0.12

Max. 100M/
line/ minute
12.5KW/
6 Servo
M4.0kw +S2.4kw 17 KW 0.6 Mpa
400ml / min
7.8×2.86 ×1.7 R-1.6x2.9x1.7
S-1.5x1.8x1.9
M-2.0x2.0x1.5
U-1.7x1.6x1.5
5600 / 6800
STR-1250S-A21E-S4 1~5 x1200~240 Roll max.220 Min.width 150 220~1400/ 0.008~0.12
Max. 100M/
line/ minute
12.5KW/
6 Servo
M4.5kw +S3.2kw 20 KW 0.6 Mpa
400ml / min
7.8×3.06 ×1.7 R-1.6x3.1x1.7
S-1.5x2.0x1.9
M-2.0x2.2x1.5
U-1.7x1.8x1.5
6500 / 7900
STR-1500S-A21E-S5 1~6 x 1440~240 Roll max.220 Min.width 150

220~1400/ 0.008~0.12

Max. 90M/
line/ minute
13.5KW/
6 Servo
M5.0kw +S4.0kw 24 KW 0.6 Mpa
400ml / min
7.8×3.31 ×1.7 R-1.6x3.4x1.7
S-1.5x2.4x1.9
M-2.0x2.6x1.5
U-1.7x2.2x1.5
7200 / 8800
STR-1750S-A21E-S6

1~7 x 1680~240 Roll max.220 Min.width 150

220~1400/ 0.008~0.12 Max. 80M/
line/ minute
13.5KW/
6 Servo
M5.5kw +S4.8kw 25 KW 0.6 Mpa
400ml / min
7.8×3.56 ×1.7 R-1.6x3.7x1.7
S-1.5x2.7x1.9
M-2.0x2.9x1.5
U-1.7x2.5x1.5
8400 / 10300
IN-LINE TYPE STR-750Si-A21E-S2 1~3 x 720~240 Roll max.220 Min.width 150 220~1200/ 0.008~0.12 Max. 100M/
line/ minute
11KW /
6 Servo
M3.5kw +S1.6kw 14.5 KW 0.6 Mpa
400ml / min
6.1×2.66 ×1.7 R-1.6x2.7x1.7
S-1.5x1.6x1.9
M-2.0x1.8x1.5
4700 / 5700
STR-1000Si-A21E-S3 1~4 x 960~240 Roll max.220 Min.width 150 220~1200/ 0.008~0.12 Max. 100M/
line/ minute
12.5KW/
6 Servo
M4.0kw +S2.4kw 16.5 KW 0.6 Mpa
400ml / min
6.1×2.86 ×1.7 R-1.6x2.9x1.7
S-1.5x1.8x1.9
M-2.0x2.0x1.5
5300 / 6500
STR-1250Si-A21E-S4 1~5 x 1200~240 Roll max.220 Min.width 150 220~1400/ 0.008~0.12 Max. 100M/
line/ minute
12.5KW/
6 Servo
M4.5kw +S3.2kw 19.5 KW 0.6 Mpa
400ml / min
6.1×3.06 ×1.7 R-1.6x3.1x1.7
S-1.5x3.0x1.9
M-2.0x2.2x1.5
6150 / 7500
STR-1500Si-A21E-S5 1~6 x 1440~240 Roll max.220 Min.width 150 220~1400/ 0.008~0.12 Max. 90M/
line/ minute
13.5KW/
6 Servo
M5.0kw +S4.0kw 23.5 KW 0.6 Mpa
400ml / min
6.1×3.31 ×1.7 R-1.6x3.4x1.7
S-1.5x2.4x1.9
M-2.0x2.6x1.5
6750 / 8300
STR-1750Si-A21E-S6 1~7 x 1680~240 Roll max.220 Min.width 150 220~1400/ 0.008~0.12 Max. 80M/
line/ minute
13.5KW/
6 Servo
M5.5kw +S4.8kw 24.5 KW 0.6 Mpa
400ml / min
6.1×3.56 ×1.7 R-1.6x3.7x1.7
S-1.5x2.7x1.9
M-2.0x2.9x1.5
7900 / 9700

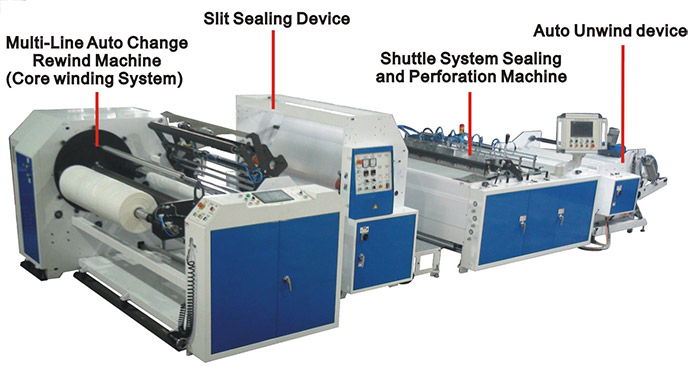

PS:For packing size--R=Rewind machine;S=Slit sealing device;M=Main sealing and perforation machine;U;Unwind device.
