Servo Driven Multilane Bottom Seal and T-shirt Bag Making Machine

Shapes of product:

Control faceplate

FEATURES :

Max. capacity 140 pieces / each line.

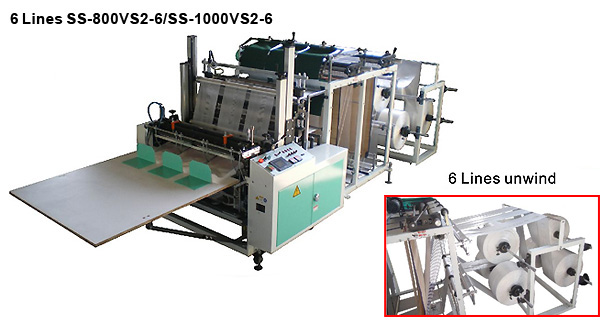

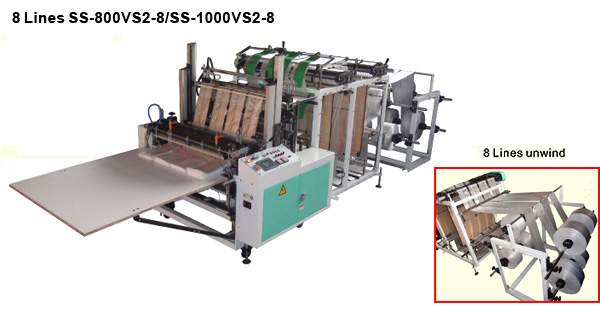

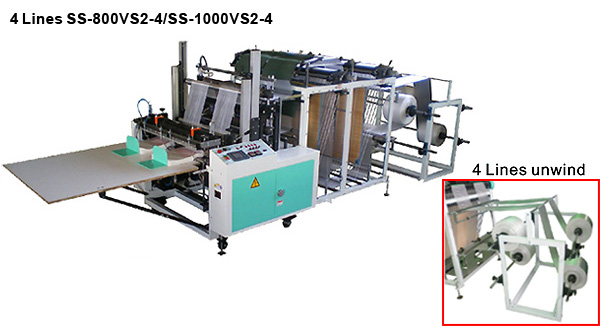

Able choice 2 lines; 4 lines;6 lines and Up to 8 lines synchronization making the same specifications.
Fully digital control system with Human Machine Interface for data setting and showing.
Sealing bar can be changed easily for T-shirt bag or plain bag
Out-feed by servo system, quick and easy length changes.
Automatically stops for out of film, jam bags, temperature abnormal, safety....etc.
Smart scissors adjustment design for the cutting knife, save your time and money.
Freight control: 20FT container can loading 4 sets SS-800VS2 or 3 sets SS-1000VS2,and 40FT container can loading 8 sets SS-800VS2 or 7 sets SS-1000VS2 machine.
Choose extra equipment to increase functions:
1.Automatic table conveyor for stacks then move.
2.Hot pin stack for T-shirt bag.
3.Heavy duty bag equipment for making thick bags.
4.More line equipment for 6 lines or 8 lines in line.

SPECIFICATIONS :

Model	Bag Size (mm)		Capacity	main motor/servo motor/feed motor/heater	Power requite/Air require	Machine size/Loading container	Packing size/Loading container	Remark
	linelayerW*L	Total film thickness	pcs/min*line
SS-800VS2-	Max. 1x2x780x1200	0.008~0.2	30~140x2	1HP with gear/ AC 2~3KW1/ DC 500W2/ 2.2KW*2	Power 3phase 6.5KW/ Compressed air 0.4Mpa (4kg) and 150L/min	Length 4.7M Width 1.53M Height 1.69M / NW. 1100kg GW. 1200kg	Length 2.23M Width 1.45M Height 1.89M / 20FT--4 sets 40FT--8 sets (without conveyor)	4 Lines isstandard; / 6 lines and 8 lines need add optional device
	Max. 2x2x385x1200		30~120x4
	Max. 3x2x240x1200		30~110x6
	Max. 4x2x175x1200		30~100x8
SS-1000VS2-	Max. 1x2x970x1200	0.008~0.2	30~140x2	1HP with gear/ AC 2~3KW1/ DC 500W2/ 2.4W*2	Power 3phase 6.9KW/ Compressed air 0.4Mpa (4kg) and 150L/min	Length 4.7M Width 1.73M Height 1.69M / NW. 1200kg GW. 1300kg	Length 2.23M Width 1.65M Height 1.89M / 20FT--3 sets 40FT--7 sets (without conveyor)	4 Lines isstandard; / 6 lines and 8 lines need add optional device
	Max. 2x2x480x1200		30~120x4
	Max. 3x2x310x1200		30~110x6
	Max. 4x2x255x1200		30~100x8
Option equipment	1.Automatic table conveyor; 2.Hot pin stack device; 3.Heavy duty bag equipment; 4. 6 lines or 8 lines equipment;
