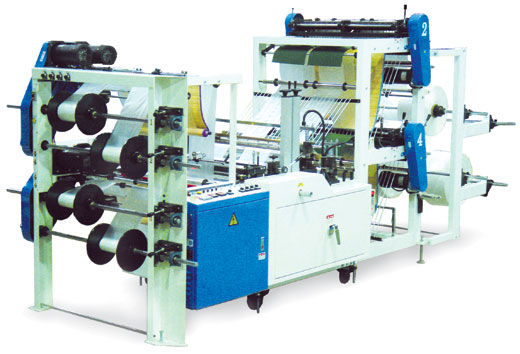

4-Line Bag on Roll Making Machine

FEATURES :
  • The infeed mechanism has a 2-layer bracket providing 4 production Lines.
  • The multi-layer structure greatly upgrades the production efficiency.
  • The print sensor on the infeed mechanism ensures superior sealing quality.
  • The machine stops automatically when the film supply runs out.
  • Two sets of feed rollers assure tension free sealing performance.
SPECIFICATIONS :
Model Bag Size (Max.)
linexlayerxWxL
(mm)		 Thickness
of film (mm)		 Capacity
(cycle/min.)		 Rewinder Dia.(mm) Material Film Dia. Power Required Machine Size
L x W x H (M)
SERVO TYPE SSR4V-800 1x2x780x1200
2x2x355x1200		 0.008~0.15 30~160x4 38~250 max.550 9KW 4.25X1.65X1.99
SSR4V-1000 1x2x980x1200
2x2x455x1200		 0.008~0.15 30~160x4 38~250 max.550 10.5KW 4.25X1.65X1.99
CLUTCH & BRAKE TYPE SSR4-800 1x2x780x1010
2x2x355x1010		 0.008~0.15 30~110x4 38~250 max.550 7.5KW 4.25X1.65X1.99
SSR4-1000 1x2x980x1010
2x2x455x1010		 0.008~0.15 30~105x4 38~250 max.550 7.7KW 4.25X1.85X1.99
  • Design and specifications are subject to change without prior notice
