T-Shirt Bag Making Machine

STP-VS-2 Series

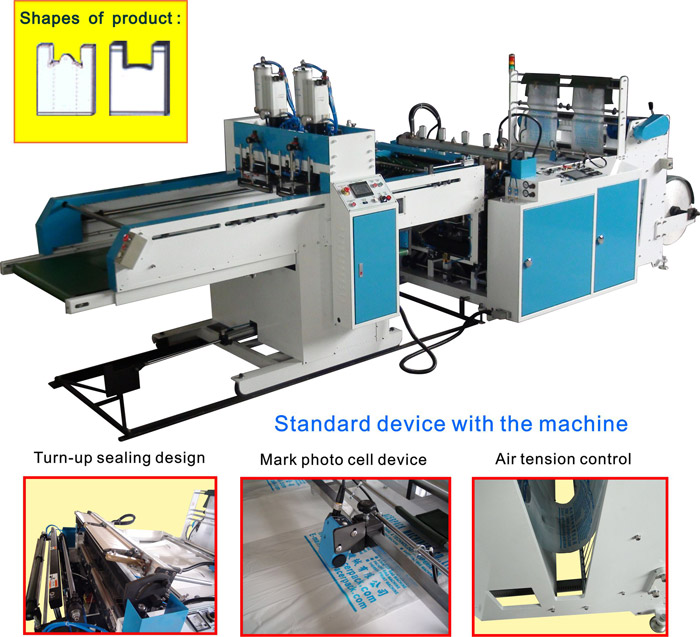

High Speed Fully Automatic 2 Track Hot-cut
T-Shirt Bag Making Machine with Air Tension control
T-Shirt Bag Making Machine
T-Shirt Bag Making Machine
    FEATURES :
  • High speed operation. Capacity : 440 pcs/min. ( 2 lines)
  • 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
  • Turn-up Sealing bar design, easy to clean and maintain.
  • Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
  • Feed auto speed control by inverter and air tension control.
  • Block or no film auto stop; no film pre-connect device make film change faster.
  • Automatic punch machine with fold device.
  • All system by H.M. I. and P.L.C. control, all-function display, maintenance.
  • Optional--Heavy duty lifting auto unwind and Air shaft easy to put film roll.
SPECIFICATIONS :
Model
Bag Width
line×W (max)
(mm)
Bag Length/
Film thickness
(mm)
Max-Cutting
of Punch
(mm)
Capacity
(pieces /min)
Main Motor /
Servo Motor
Heater
Power
Required
Air supply
Required
Machine Size
L×W×H (M)
Packing Size
L×W×H (M)
N.W./G.W.
(Kgs)
STP-
800V2S-2
2 x 360 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 440
(2 lines)
2Hp 4P/
3.0 KW×2
1.5 KW×2
+ 0.8 KW×2
8.0 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×1.85×2.0/
Punch machine
2.9×1.65×2.1
2600/3000
STP-
1000V2S-2
2 x 460 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 420
(2 lines)
2Hp 4P/
3.0 KW×2
1.9 KW×2
+ 1.0 KW×2
9.4 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×2.05×2.0/
Punch machine
2.9×1.85×2.1
2900/3300
STP-
1200V2S-2
2 x 560 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 400
(2 lines)
2Hp 4P/
4.5 KW×2
2.3 KW×2
+ 1.2 KW×2
12.2 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×2.25×2.0/
Punch machine
2.9×2.05×2.1
3100/3600
STP-
800VS-2
2 x 360 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 400
(2 lines)
2Hp 4P/
3.0 KW×1
1.5 KW×2
+ 0.8 KW×2
7.0 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×1.85×2.0/
Punch machine
2.9×1.65×2.1
2600/3000
STP-
1000VS-2
2 x 460 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 400
(2 lines)
2Hp 4P/
4.5 KW×1
1.9 KW×2
+ 1.0 KW×2
8.9 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×2.05×2.0/
Punch machine
2.9×1.85×2.1
2850/3250
STP-
1200VS-2
2 x 560 300~700
0.012~0.035
Thickness of pile
Max. 20 mm
Max. 400
(2 lines)
2Hp 4P/
4.5 KW×1
2.3 KW×2
+ 1.2 KW×2
9.9 KW 0.6 Mpa
400ml/min
5.7×1.7×1.9 Sealing machine
2.35×2.25×2.0/
Punch machine
2.9×2.05×2.1
3050/3550
  • Design and specifications are subject to change without prior notice
